True Chuck

Do you mean **Turret Lathe (Turno Lathe) specifications** or **Turno brand machine specifications**? Hereïs a **short generic Turno Lathe specification** format: * **Swing over bed:** 300ï400 mm * **Swing over carriage:** 180ï250 mm * **Centre distance:** 500ï1000 mm * **Spindle bore:** 40ï80 mm * **Spindle speed:** 40ï2000 RPM (variable) * **Turret stations:** 4 / 6 / 8 * **Bed type:** Heavy-duty, hardened & ground * **Motor power:** 3ï7.5 HP

Product Type: Chuck Accessories & Replacement Spare Parts Material: Alloy Steel / Hardened Steel / Cast Iron (as per part type) Range: Available for 2, 3, 4 & 6 jaw chucks (manual & power operated) Parts Included: Jaws, Jaw Screws, Pinions, Back Plates, Wedges, Springs, Nuts, Soft Jaws, Hard Jaws, Actuators etc. Application: Repair, replacement & maintenance of manual and power chucks in CNC, VMC & Lathe machines Features: High strength, wear resistant, precision ground, interchangeable with standard chuck models Sizes: As per chuck size (100mm ï 600mm and above) Finish: Black oxide / ground finish Warranty: Standard Manufacturer Warranty

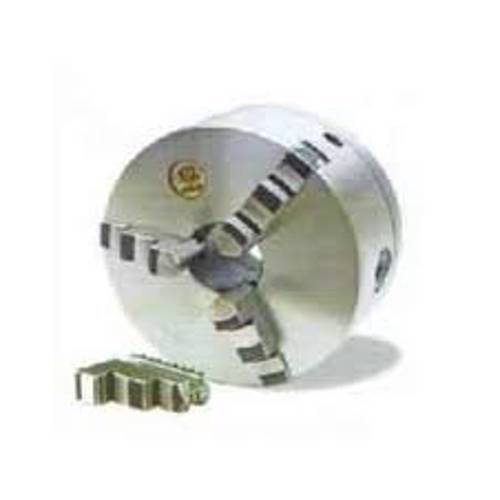

Material: Alloy Steel, Hardened & Ground Product Type: Accuracy Adjustable Lathe Chuck Size: 200 mm (8) diameter Clamping Range: As per jaws (ID & OD clamping possible) Jaw Type: 2 / 3 / 4 jaws (independent or scroll, as per model) Accuracy Adjustment: ±0.01 “ 0.02 mm concentricity adjustment Mounting: Standard lathe spindle nose mounting (A2 / DIN / Camlock) Weight: Approx. 18“20 kg Efficiency: High repeatability & precision holding Colour / Finish: Natural Steel / Black Oxide Usage: Machine Tools, CNC Lathes, Grinding, Precision Turning Features: High accuracy clamping with micro adjustment screws Suitable for tool room & high precision jobs Durable, wear-resistant design

Product Type: Dust Proof Self-Centring Chuck Material: High-Grade Alloy Steel, Case Hardened & Ground Jaw Type: 2, 3, 4, or 6 Jaws (as per requirement) Design: Fully enclosed body with dust-proof sealing system Clamping Type: Self-Centring (Scroll Mechanism) Direction: Forward & Reverse Rotation Accuracy: High concentricity ‰0.02 mm Sizes Available: 100 mm “ 400 mm Dia. Dimension (L—W—H): As per chuck size Weight: 10 kg “ 50 kg (approx., depending on size) Max. Speed: 2000 “ 3500 RPM (as per model) Capacity: Heavy-duty clamping for CNC & Conventional Machines Surface Finish: Ground, Black Oxide, or Nickel Plated (dust protection) Colour: Standard Grey / Black Features: Dust-proof design for longer life Ideal for grinding & dusty environments Self-centring for high precision Hardened body & jaws for durability Usage: CNC, VMC, Lathe, Grinding, and High Precision Workholding Warranty: 12 Months (against manufacturing defects)

Product Type: Heavy-Duty Lathe Chuck (Cooker Type) Material: High-grade Cast Iron / Alloy Steel body Size Range: 100 mm ï 600 mm (as per requirement) Jaw Type: 3-Jaw / 4-Jaw, Self-Centering or Independent Mounting: Direct mount / Back Plate mount (as per lathe spindle nose) Application: General turning, holding round, square & irregular workpieces in lathe operations Features: High gripping strength Precision ground jaws for accuracy Rigid body construction Long service life Accuracy: Concentricity within standard tolerance (0.03ï0.05 mm depending on size) Finish: Black Oxide / Precision Machined Warranty: Standard Manufacturer Warranty

Material: Alloy Steel, Hardened & Ground Product Type: Accuracy Adjustable Lathe Chuck Size: 200 mm (8) diameter Clamping Range: As per jaws (ID & OD clamping possible) Jaw Type: 2 / 3 / 4 jaws (independent or scroll, as per model) Accuracy Adjustment: ±0.01 “ 0.02 mm concentricity adjustment Mounting: Standard lathe spindle nose mounting (A2 / DIN / Camlock) Weight: Approx. 18“20 kg Efficiency: High repeatability & precision holding Colour / Finish: Natural Steel / Black Oxide Usage: Machine Tools, CNC Lathes, Grinding, Precision Turning Features: High accuracy clamping with micro adjustment screws Suitable for tool room & high precision jobs Durable, wear-resistant design

6 Jaws True Chuck : Type: Self-centering True Chuck Number of Jaws: 6 Material: Hardened Alloy Steel Body Accuracy: High concentricity and gripping precision Clamping Range: 10 mm to 250 mm (varies by size) Mounting Type: Threaded / Flange (as per machine type) Operation: Manual with key / Hydraulic compatible Usage: Ideal for thin-wall components, delicate materials, and concentric gripping Applications: CNC Lathe, VMC, Turning Centers, Precision Machining Size Available: 6", 8", 10", 12", 16" Surface Finish: Ground and Blackodised / Rust-protected Country of Origin: India
