Collet Chuck

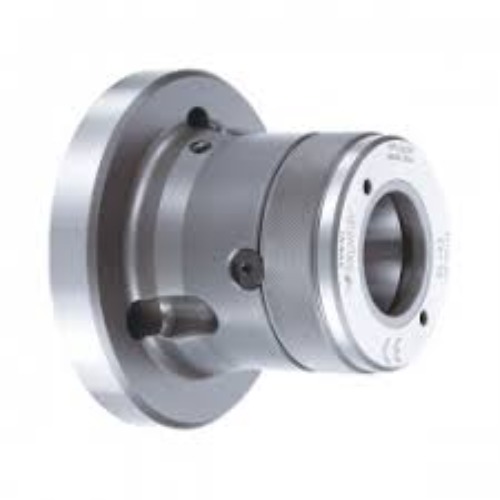

AIRTECH COLLET CHUCK

Product Type: Collet Chuck Material: Alloy Steel, Case Hardened & Ground Standard Collets Supported: ER, R8, 5C, TG, OZ, etc. (as per model) Clamping Range: 1 mm ï 26 mm (depending on collet size) Runout Accuracy: ï 0.005 mm (high precision) Design: Compact & balanced for high-speed machining Mounting: Direct mount / back plate mount (DIN, ISO, A2, L-type standards) Holding Capacity: Strong & uniform gripping of cylindrical workpieces or tools Torque Transmission: High torque with rigid clamping force Speed Capacity: Up to 6000 RPM (model dependent) Features: Quick tool/work changeover High concentricity & accuracy Suitable for both manual & CNC machines Reduces tool slippage & vibration Application: CNC lathes, milling machines, grinding, drilling, tapping, tool holding Surface Finish: Precision-ground with anti-corrosion coating Weight: Varies by model (approx. 3ï12 kg) Colour: Natural Steel Finish / Black Oxide Warranty: Standard Manufacturer Warranty

A-25 Hydraulic Collet Chuck

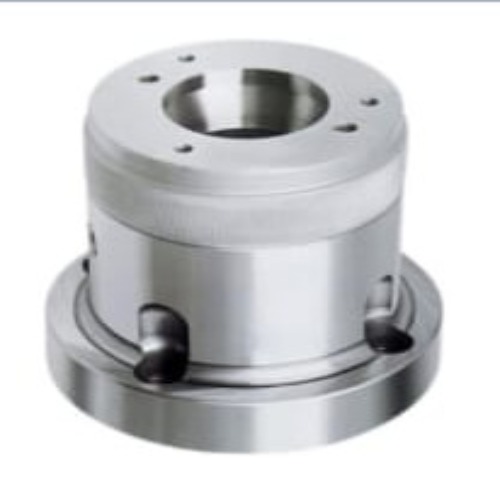

MIEKA COLLET CHUCK

Product Type: Collet Chuck Material: Alloy Steel, Case Hardened & Ground Standard Collets Supported: ER, R8, 5C, TG, OZ, etc. (as per model) Clamping Range: 1 mm 26 mm (depending on collet size) Runout Accuracy: 0.005 mm (high precision) Design: Compact & balanced for high-speed machining Mounting: Direct mount / back plate mount (DIN, ISO, A2, L-type standards) Holding Capacity: Strong & uniform gripping of cylindrical workpieces or tools Torque Transmission: High torque with rigid clamping force Speed Capacity: Up to 6000 RPM (model dependent) Features: Quick tool/work changeover High concentricity & accuracy Suitable for both manual & CNC machines Reduces tool slippage & vibration Application: CNC lathes, milling machines, grinding, drilling, tapping, tool holding Surface Finish: Precision-ground with anti-corrosion coating Weight: Varies by model (approx. 312 kg) Colour: Natural Steel Finish / Black Oxide Warranty: Standard Manufacturer Warranty

COLLETS ( E & R8 TYPR )

Material: Alloy Steel, Hardened & Precision Ground Processing Type: CNC Machined, Heat Treated Collet Type: ER Series (ER8 to ER50) / R8 Standard

ER COLLETS

SIDE LOCK HOLDER
