Precision workholding for CNC, VMC, Lathe & Grinding machines
200 Millimeter (mm)
1.5 - 3 Ton
2 , 3 , 4 JAWS
No
20 Kilograms (kg)
Accuracy Adjustable Lathe Chuck
Manual
Stainless Steel
Standard Grey / Black Oxide
No
No
1
ACCURACY ADJUSTABLE CHUCK Trade Information
TKD
Cash Against Delivery (CAD)
50 Piece Per Month
1 Week
Contact us for information regarding our sample policy
CORRUGATED CORASIS
All India
An accuracy adjustable chuck, including the 200mm model from the brand Turno, does not typically have individual product certifications like a CE mark. Instead, its quality and performance are guaranteed by the manufacturer's internal quality management system and its adherence to specific industry standards.
Key Certifications and Quality Assurances
ISO 9001 Certification: Turno is an ISO-certified company, which is the most important assurance of quality. This indicates that its entire manufacturing process, from material sourcing to final product testing, adheres to an internationally recognized Quality Management System (QMS).
Manufacturing Standards: The quality of an adjustable chuck is primarily defined by its ability to achieve a very low runout, which is verified through the manufacturer's internal testing. The product's specifications, such as a guaranteed accuracy down to 0.005mm and a repetitive accuracy of 0.015mm, are the key quality indicators.
Safety Compliance: As a workholding device, the chuck's design must comply with safety standards related to its clamping mechanism to ensure it securely holds the workpiece under all operating conditions. This includes compliance with standards like ISO 16156:2004 which outlines safety requirements for the design and construction of workholding chucks.
Product Description

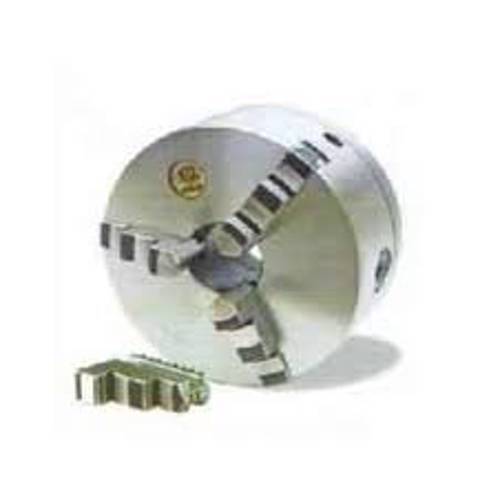

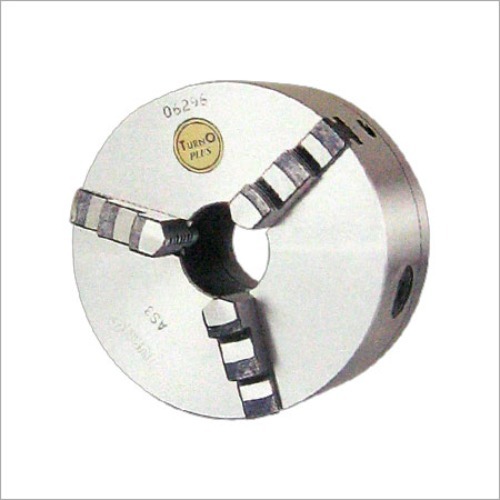

The Turno "AS Type" Accuracy Adjustable Chuck is a high-precision lathe chuck designed for applications where minimal runout is critical.The 200mm diameter is a standard size, suitable for a wide range of medium-sized lathes.It's a key tool for second operations and toolroom work that demand a higher degree of accuracy than standard chucks can provide.
Key Features and Design
Adjustable Runout: This chuck features radial adjusting screws on the back of the body.After the workpiece is initially clamped, a dial indicator is used to measure the runout. The adjusting screws are then manipulated to shift the entire chuck assembly until near-zero runout is achieved.
High Precision: Turno chucks are manufactured with a high level of precision, with accuracy guaranteed down to 0.005mm. This makes them ideal for jobs requiring extremely tight tolerances.
Durable Construction: The body is made from high-strength semi-steel with a hardness of 180-210 BHN.The jaws are made from low carbon hardening steel with a hardness of 55-60 HRC, and the scroll plates are forged from alloy steel, ensuring longevity and durability.
Repetitive Accuracy: Once the initial adjustment is made for a specific part diameter, repetitive machining of similar jobs can be done with a high degree of concentricity, typically within 0.015mm.
