ShapeChuck Shape: Round Rotary Cylinder Shape: Cylindrical (Matches the chuck body for coaxial mounting)
Diameter100 Millimeter (mm)
Product Type3-Jaw Self-Centering Chuck with Rotary Cylinder
General UseThe TURNO Rotary Cylinder is primarily used for automatic clamping systems in CNC and conventional turning machines. It allows precise and high-speed actuation of power chucks without manual intervention.
The TURNO Rotary Cylinder is primarily used for automatic clamping systems in CNC and conventional turning machines. It allows precise and high-speed actuation of power chucks without manual intervention.
Chuck Shape: Round Rotary Cylinder Shape: Cylindrical (Matches the chuck body for coaxial mounting)
Simple Control, Stable Operation, High Performance, ECO Friendly, Low Noise
Other
1
0.03 Millimeter (mm)
N/A
Frequency Speed Control
Yes
Yes
3D
Stainless Steel Alloy
SILVER / Industrial Grey
The TURNO Rotary Cylinder is manufactured under a strict quality assurance system, ensuring high performance, safety, and durability.
160 Millimeter (mm)
100 Pcs/min
Yes
TURNO ROTARY CYLINDER Trade Information
TKD
Cash Against Delivery (CAD)
10 Piece Per Month
5 Days
No
Contact us for information regarding our sample policy
CORRUGATED CORASIS
Middle East
All India
TURNO, as a brand, places a strong emphasis on quality management, which is reflected in its certifications and manufacturing processes.
ISO Certification: Turno Chucks is an ISO certified company. This is the primary and most important certification for the brand, indicating that their entire manufacturing process, from material sourcing to final product testing, adheres to an internationally recognized Quality Management System (QMS). While a specific version (e.g., ISO 9001:2015) may not be listed in all public-facing materials, the certification itself is a guarantee of a consistent and controlled process, which is essential for products like rotary cylinders that must operate reliably under high pressure and speed.
Internal Quality Assurance: In addition to their formal certification, Turno's product descriptions highlight their internal quality control measures. These include:
Precision Machining: The cylinder bodies are made from alloy aluminum and precision machined for an accurate fit.
High-Quality Materials: Components like the piston are made from high-strength steel (EN-8 forged steel) to ensure durability and reliability.
Rigorous Testing: The use of high-speed bearings in the rotary manifold and other precision-engineered parts is a result of their focus on ensuring smooth, vibration-free operation.
Product Description

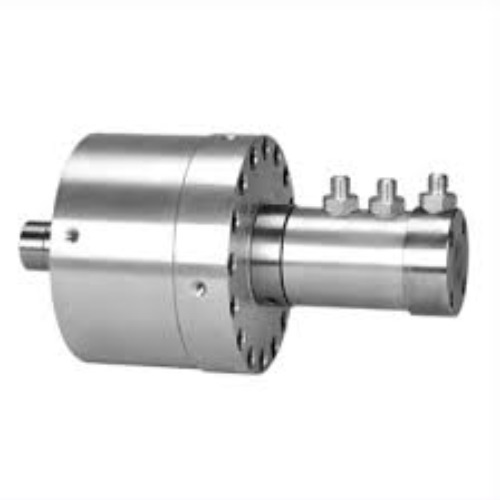

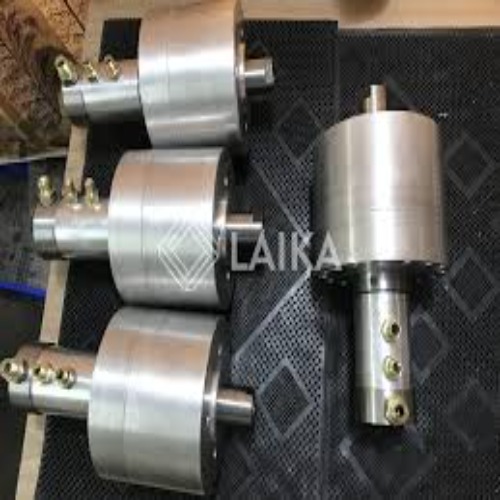

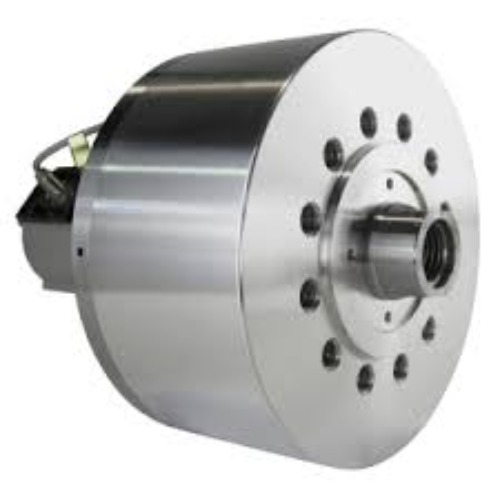

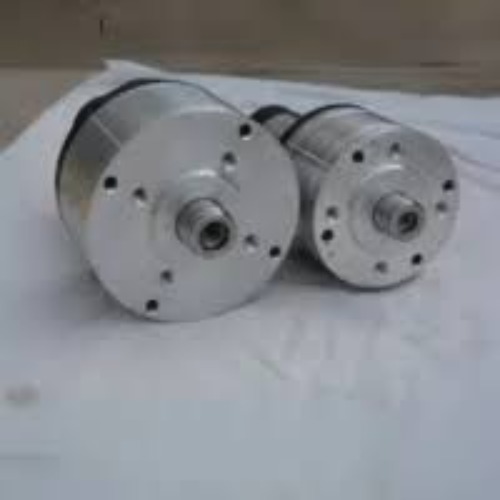

The TURNO Rotary Cylinder is a crucial component for the operation of power chucks on CNC and automatic lathe machines. Manufactured by Turno Chucks, a company with a long history in machine tool accessories, these cylinders are engineered to convert hydraulic pressure into the powerful, linear motion needed to clamp and unclamp workpieces in a matter of seconds.

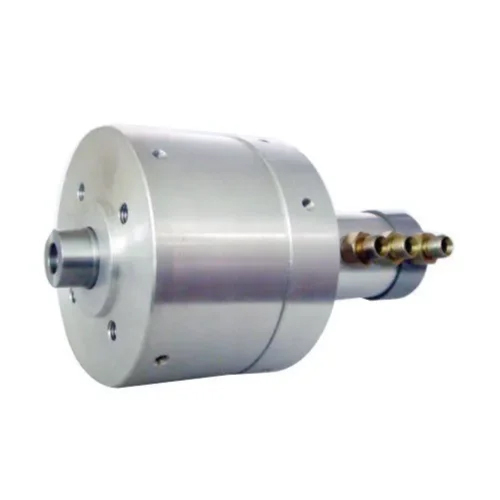

TURNO offers both close-center and open-center hydraulic cylinders, providing options for different machining applications. The close-center cylinders are ideal for general workholding, while open-center models are designed to accommodate bar feeding, allowing long material to pass through the spindle and cylinder for continuous production.
Key Features and Design:
Robust Construction: The cylinder body is precision-machined from a lightweight and durable alloy aluminum, which helps reduce the overall weight and stress on the machine spindle.The piston, the core component responsible for the clamping force, is made from EN-8 forged steel, ensuring high strength and reliability under pressure.
High-Speed Operation: The design of the TURNO rotary cylinder is optimized for high rotational speeds, with a rotary manifold that is fitted with accurate and high-speed bearings. This ensures smooth, vibration-free operation even at high RPMs, which is essential for modern CNC machining.
Powerful Clamping Force: By converting hydraulic pressure into a linear pulling or pushing force on the drawbar, the cylinder provides a high gripping force to the power chuck. This powerful clamping is critical for securely holding workpieces and preventing them from slipping during heavy-duty cutting.
Safety and Durability: The combination of high-quality materials and a precision-engineered design results in a cylinder that is built for longevity. All moving parts are manufactured to close tolerances, which minimizes wear and guarantees consistent performance over the product's lifespan.
Versatile Sizing: TURNO rotary cylinders are available in a variety of outer diameters (e.g., 90 mm, 120 mm, 160 mm), allowing them to be a suitable match for a wide range of power chucks and lathe spindles.
