Provides rotational actuation for power chucks in CNC lathes and turning centers
100 Millimeter (mm)
N/ A
PLC Control
Stainless Steel Alloy
100% tested under load pressure
Metallic grey / Silver
Other
Volt (v)
Other
0.01 Millimeter (mm)
Yes
ECO Friendly, Low Noise, Simple Control, Stable Operation, High Performance
4.5 Pcs/min
330 Millimeter (mm)
90 N-m
22 Kilograms (kg)
MIEKA ROTARY CYLINDERS Trade Information
TKD
Cash Against Delivery (CAD)
10 Piece Per Month
15 Days
No
Contact us for information regarding our sample policy
CORRUGATED CORASIS
Middle East
All India
ISO 9001:2015 Certification: Guru Nanak Machine Tools is an ISO 9001:2015 certified company. This international standard for a Quality Management System (QMS) ensures that their manufacturing processes are consistently managed to provide high-quality products. It confirms a commitment to continuous improvement and customer satisfaction.
Compliance with DIN and IS Standards: The company asserts that its products, including the rotary cylinders, conform to DIN and IS standards.
DIN (Deutsches Institut f r Normung): Adherence to these German standards is a sign of a commitment to high-quality engineering and dimensional precision.
IS (Indian Standards): Conforming to standards set by the Bureau of Indian Standards ensures that the products meet the quality and performance requirements for the Indian market.
Product Description

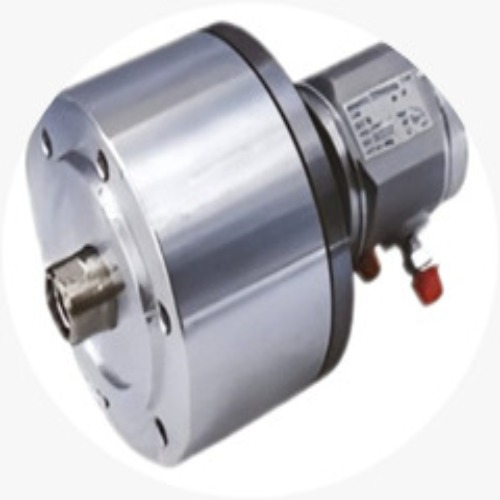

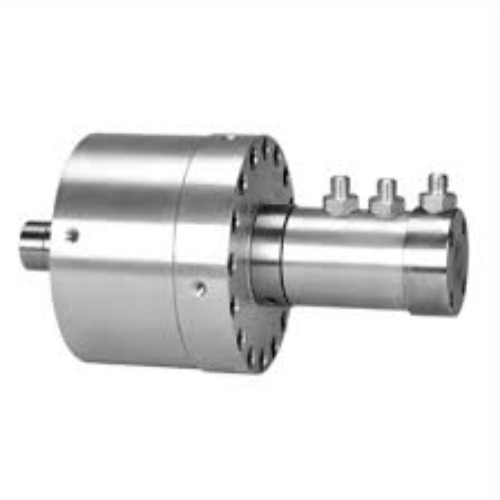

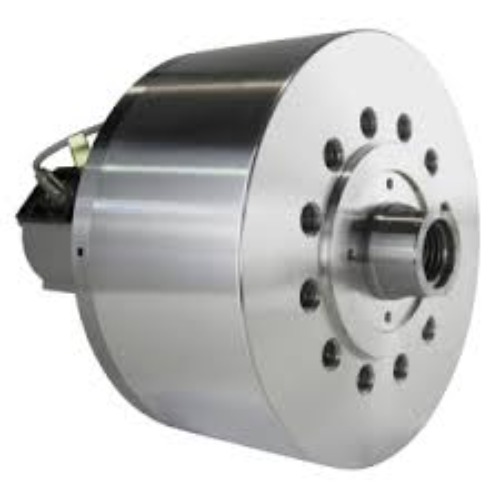

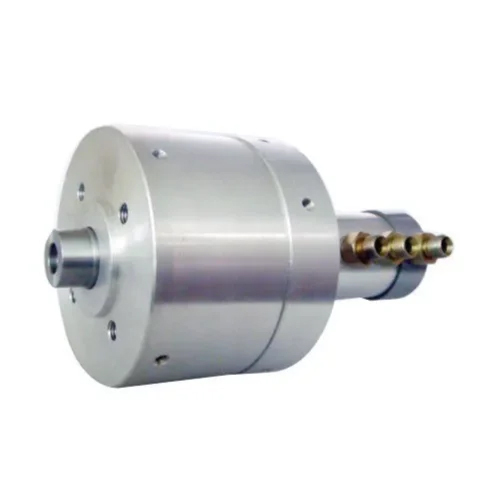

The MIEKA Rotary Cylinder is engineered to convert hydraulic pressure into the precise, high-speed linear motion required to clamp and unclamp workpieces on power chucks. Designed for demanding industrial environments, these cylinders are known for their durability, balanced performance, and reliability.

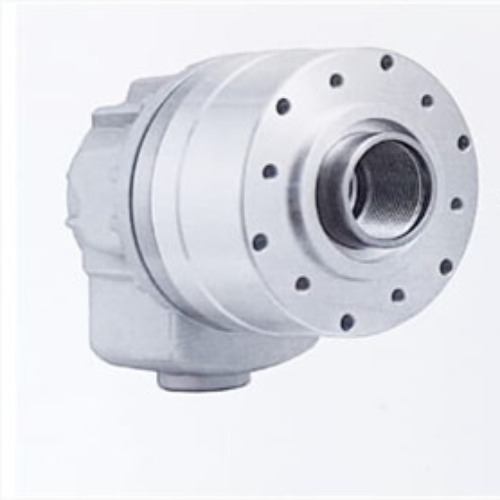

The MIEKA line includes both close-center (non-through-hole) and open-center (hollow-bore) models. The open-center design is particularly useful for bar feeding, allowing long material to pass through the spindle and cylinder, which is essential for continuous, high-volume production.
Key Features and Design:
Robust Construction: The cylinder body is typically made from lightweight, high-grade aluminum, which minimizes the load on the machine spindle and maintains stability during high-speed rotation. Key internal components are often made from graded alloy steel to ensure strength and a long service life.
High-Speed Operation: MIEKA cylinders are designed to perform efficiently at high RPMs, with some models capable of operating at speeds up to 6000 RPM. This is achieved through a precision-engineered design that reduces vibration and heat generation.
Powerful Clamping Force: The hydraulic system within the cylinder provides a powerful and consistent clamping force, which is crucial for preventing workpiece slippage during heavy cutting, while also ensuring repeatable accuracy.
Safety and Durability: The components undergo heat treatment and careful machining to withstand high working pressures (up to 40 BAR) and resist wear and tear. This rigorous manufacturing process contributes to the longevity and safety of the product.
Precision and Quality: MIEKA rotary cylinders are produced with a focus on precision, with a high standard of tolerance (0.01 mm in some cases) to ensure a seamless integration with power chucks and machine spindles.
