Product Description

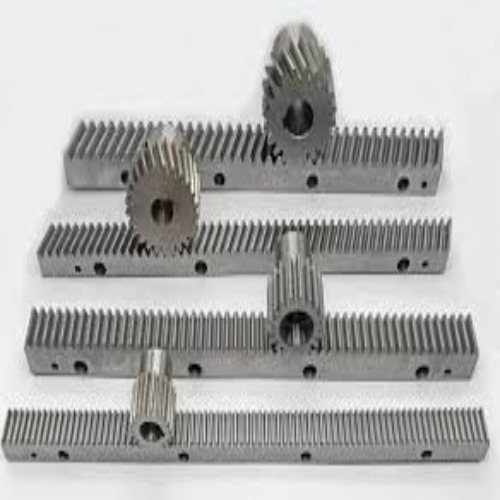

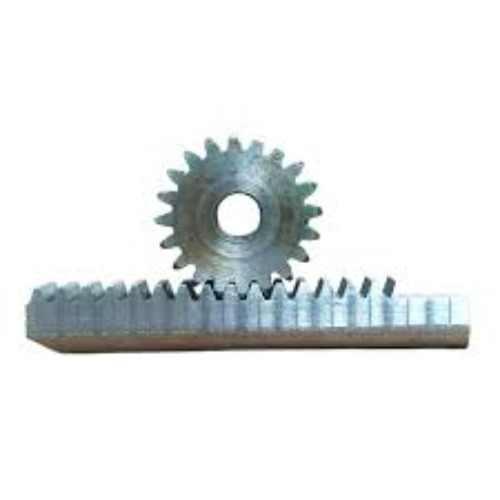

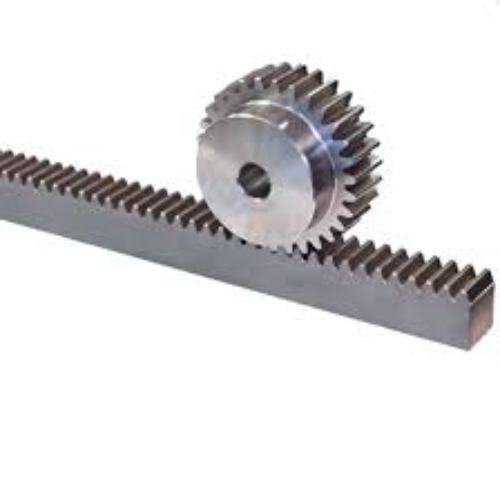

A helical rack and pinion system is a mechanical assembly that converts rotational motion into precise linear motion, and vice versa. It consists of a round gear called a pinion with angled, or helical, teeth, that meshes with a straight bar called a rack, which also has helical teeth. This design is an advanced alternative to a traditional straight-toothed rack and pinion system.
Key Features and Design
-
Helical Teeth: The defining feature is the teeth cut at a helix angle on both the rack and the pinion. This angled design allows for more gradual and continuous engagement between the teeth.
-
Smooth and Quiet Operation: Due to the gradual meshing of the teeth, helical rack and pinion systems operate with significantly less noise and vibration compared to their straight-toothed counterparts. This makes them ideal for applications where quiet operation is critical.
-
High Load Capacity: The helical design distributes the load across multiple teeth simultaneously. This increased contact area allows the system to handle heavier loads and transmit higher torque with greater efficiency.
-
High Precision: The continuous contact between the teeth results in minimal backlash and high positional accuracy, which is essential for precision motion control systems.
