REVOLVING CENTER

REVOLVING CENTER Specification

Spindle Speed
3500 RPM

Tool Type
Lathe Accessory / Workholding & Supporting Tool

Cutting Speed
3000 RPM

Noise Level
70 db

Power Source
Manual / Machine-driven Powered by the lathe spindle rotation.

Application
Supports long or slender workpieces in lathe turning operations to prevent bending or vibration. Used in CNC and conventional lathes for high-precision machining. Ideal for metalworking, shaft turning, pipe machining, and general engineering applications. Suitable for medium to heavy-duty machining where stable support is required.

Product Type
Precision Machine Tool Accessory.

Material
Alloy Steel (Hardened & Ground)

Computerized
No

Automatic Grade
Manual

Control System
PLC Control

Drive Type
Manual

Voltage
0.01 Volt (v)

Weight (kg)
5 Kilograms (kg)

Dimension (L*W*H)
320 Millimeter (mm)

Capacity
6 Kg/day

Feature
Simple Control, High Performance, ECO Friendly, Low Noise, Lower Energy Consumption

Color
Silver

Warranty
1

REVOLVING CENTER Trade Information

Minimum Order Quantity
1 Piece

FOB Port
TKD

Payment Terms
Cash Against Delivery (CAD)

Supply Ability
10 Pieces Per Month

Delivery Time
5 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
CORRUGATED CORASIS

Main Export Market(s)
Middle East

Main Domestic Market
All India

Certifications
Turnmax Machine Tools, the manufacturer of TURNMAX Revolving Centers, holds a key certification that assures the quality of its products. Certifications ISO 9001:2008 Certified: Turnmax Machine Tools is an ISO 9001:2008 certified company. This is a globally recognized standard for a Quality Management System (QMS), which ensures that the company's manufacturing processes are consistently managed to provide high-quality products. This certification applies to the company's entire production, including their revolving centers. Additional Quality Assurances High-Quality Components: Their product descriptions emphasize the use of high-quality components, such as German and Japanese bearings, to ensure their revolving centers can withstand very high RPMs and heavy loads, making them suitable for CNC and other high-speed applications. Precision Engineering: TURNMAX revolving centers are built to achieve a high degree of precision, with runout figures as low as 0.008mm for their super precision models. The company also states their quality is comparable to some of the best European brands.

About REVOLVING CENTER

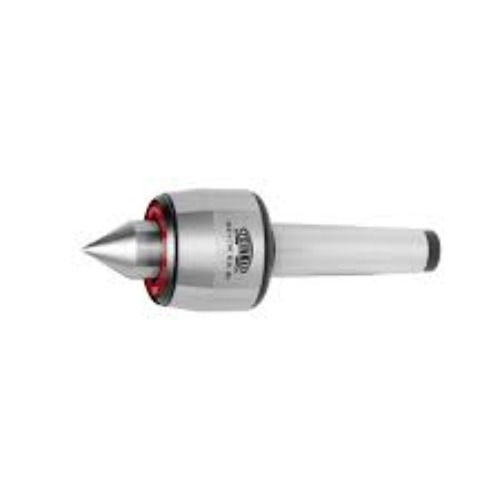

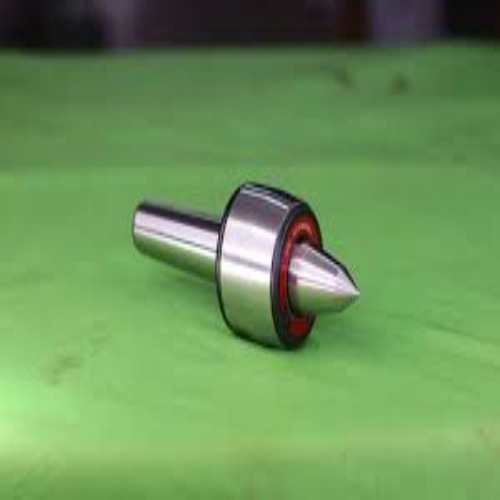

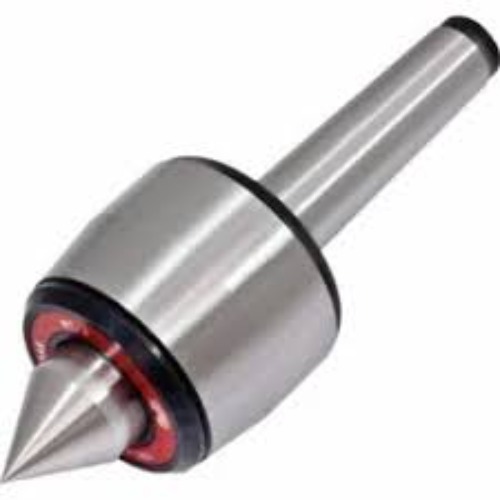

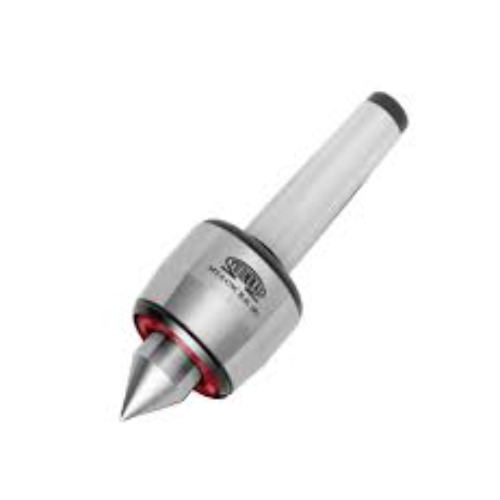

A TURNMAX Revolving Center (also known as a live center) is a precision lathe accessory manufactured by Turnmax Machine Tools, a leading Indian company in this product category. Its primary function is to support the free end of a workpiece on a lathe, allowing it to be turned at high speeds without the friction and wear associated with a stationary dead center.

Key Features and Design

Precision and High-Speed Operation: TURNMAX revolving centers are engineered for high-speed applications, particularly on CNC and other high-speed lathes. They are designed to withstand high RPMs and heavy loads, providing a stable support system for the workpiece.
Robust Bearing System: The center's ability to revolve smoothly is thanks to its internal bearing system. Turnmax uses high-quality bearings, often from German or Japanese manufacturers, which are capable of withstanding significant radial and axial loads.
Durable Construction: The body and point of the revolving center are made from high-quality, hardened alloy steel, ensuring long-term durability and wear resistance. The shank, which fits into the machine's tailstock, is ground to precise Morse Taper (MT) specifications (e.g., MT2, MT3, MT4, MT5, MT6) for a secure fit.
Protection against Contaminants: Many models feature oil seals or other protective mechanisms to prevent coolant, chips, and dirt from entering the bearing assembly, which extends the life and maintains the precision of the center.
Versatile Models: TURNMAX offers a wide range of revolving centers, including standard, heavy-duty "R" models, pipe centers for hollow workpieces, and stub-type points, catering to various machining requirements.
