UNIVERSAL VICE

UNIVERSAL VICE Specification

Noise Level
0 db

Cutting Speed
0 RPM

Spindle Speed
0 mm/m

Application
Used on milling machines, drilling machines, and surface grinders for holding workpieces securely

Tool Type
Workholding / Clamping device

Power Source
Manual (hand-operated clamping mechanism)

Product Type
Workholding vice for machine tools

Material
Precision workholding for milling, drilling, shaping, and grinding operations

Computerized
No

Automatic Grade
Manual

Control System
PLC Control

Drive Type
Manual

Voltage
0.1 Volt (v)

Weight (kg)
60 Kilograms (kg)

Dimension (L*W*H)
800 Millimeter (mm)

Capacity
3 Ton

Feature
High Performance, ECO Friendly, Low Noise, Simple Control

Color
Blue

Warranty
1

UNIVERSAL VICE Trade Information

Minimum Order Quantity
1 Piece

FOB Port
TKD

Payment Terms
Cash Against Delivery (CAD)

Supply Ability
5 Pieces Per Month

Delivery Time
15 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
CORRUGATED CORASIS

Main Export Market(s)
Middle East

Main Domestic Market
All India

Certifications
Unique Industries is an ISO 9001:2015 certified company, ensuring that the UNIQUE universal vice and their other products are manufactured under a consistent and quality-controlled system. Additional Quality and Construction Standards While a universal vice doesn't require product-specific safety certifications like CE marking, its quality is verified through the manufacturing process and material standards. Materials: The vice body and base are typically made from S.G. (Spheroidal Graphite) ductile iron or high-strength cast iron. These materials are known for their toughness and rigidity, providing an "unbreakable" body. Precision Manufacturing: The jaws are made from hardened steel and are precision-ground to ensure a firm grip and accurate alignment. All swiveling movements feature positive locking to maintain the set angle during machining. Compliance: The company's focus on precision and sturdiness is a key selling point. Although specific compliance with standards like DIN or IS is not always explicitly listed, the ISO 9001 certification confirms that internal processes are in place to meet or exceed industry expectations for quality and performance.

About UNIVERSAL VICE

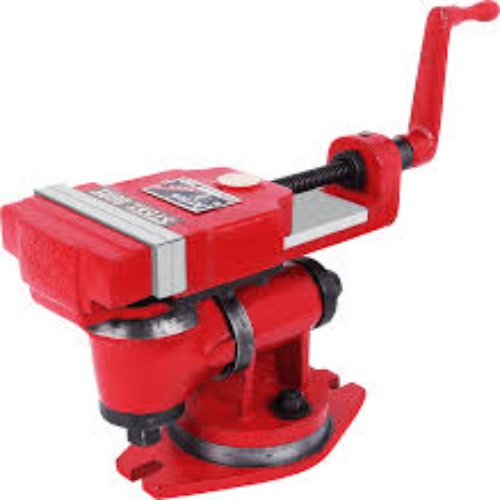

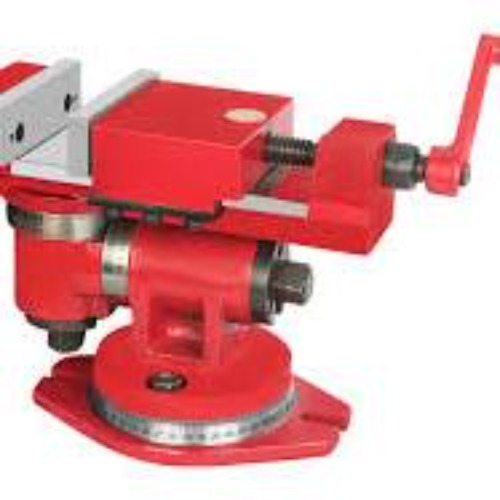

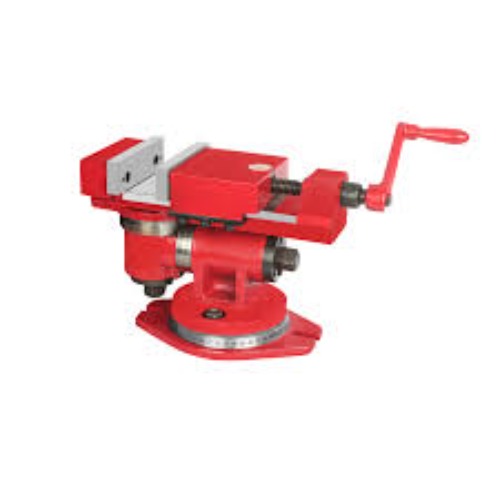

A UNIQUE universal vice is a versatile and precision-engineered workholding device designed for machine tools such as milling, grinding, and drilling machines. Manufactured by Unique Industries (India), these vices are built to securely clamp workpieces at various compound angles, which is critical for complex machining operations.

Key Features and Design

Multi-Axis Movement: The core strength of a UNIQUE universal vice is its ability to move and lock in multiple directions. It features a swivel base that rotates 360 on the horizontal axis and a tilting mechanism that allows the vice to be set at any angle up to 90. This three-way movement provides the flexibility to position a workpiece for any conceivable machining angle.
Durable Construction: The body and base are made from S.G. (Spheroidal Graphite) ductile iron or high-strength cast iron, which provides toughness, rigidity, and the ability to withstand heavy loads without fracturing. The jaws are made from hardened steel and are accurately ground for a firm and precise grip.
Precision and Stability: All swiveling and tilting movements have positive locking mechanisms to prevent any shifting during machining. The vice's fine acme thread screw and thrust collar ensure high clamping force with minimal effort. This stability is essential for maintaining accuracy during intricate operations.
Applications: The ability to set the job at a low height and at any compound angle makes this vice particularly suitable for:
- Tool and Cutter Grinding: For sharpening complex tools.
- Universal and Surface Grinding: For grinding angled surfaces.
- Milling and Drilling: For creating angular features or holes.
