MODULAR VICE

MODULAR VICE Specification

Noise Level
0.01 db

Power Source
Manual operation (mechanical screw clamp) or hydraulic version (if specified).

Tool Type
Workholding / Clamping Tool Machine Vice (Modular)

Spindle Speed
0.01 mm/m

Cutting Speed
0.01 mm/m

Application
Precision workholding for milling, drilling, grinding, and CNC machining operations. Ideal for securing workpieces during high-accuracy machining.

Product Type
Modular Machine Vice.

Material
High-grade alloy steel, precision-ground and hardened for durability.

Computerized
Yes

Automatic Grade
Manual

Control System
PLC Control

Drive Type
Manual

Voltage
0.5 Volt (v)

Weight (kg)
35 Kilograms (kg)

Dimension (L*W*H)
730 Millimeter (mm)

Capacity
4.5 Ton

Feature
Lower Energy Consumption, Simple Control, High Performance, ECO Friendly, Low Noise

Color
Silver

Warranty
1

MODULAR VICE Trade Information

Minimum Order Quantity
1 Piece

FOB Port
TKD

Payment Terms
Cash Against Delivery (CAD)

Supply Ability
10 Pieces Per Month

Delivery Time
15 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
CORRUGATED CORASIS

Main Export Market(s)
Middle East

Main Domestic Market
All India

Certifications

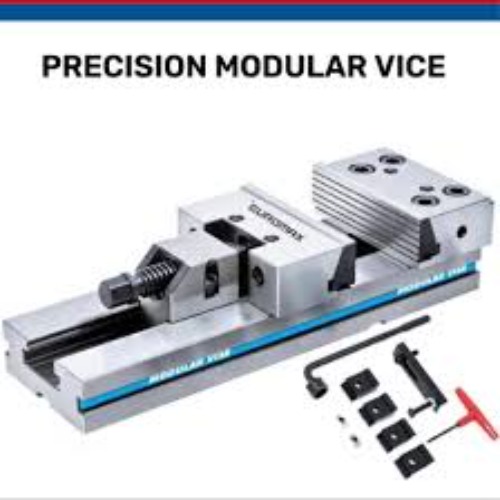

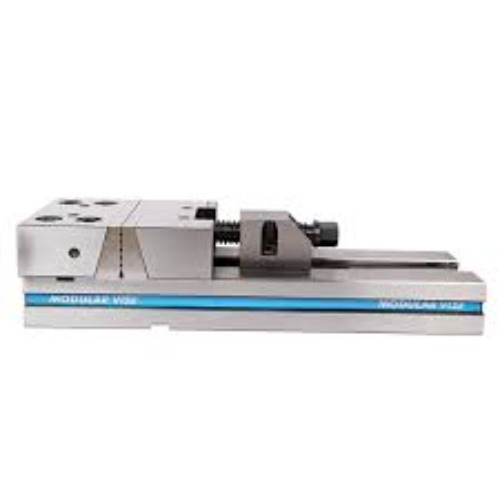

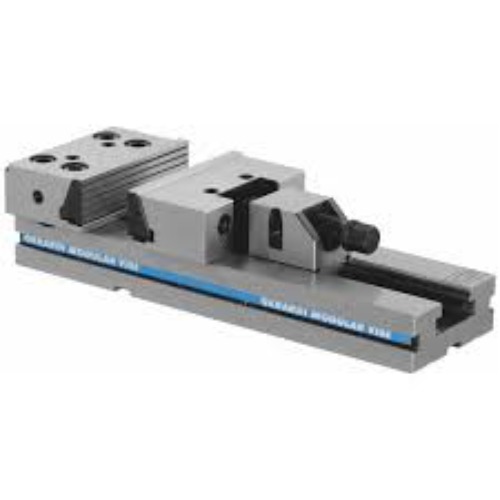

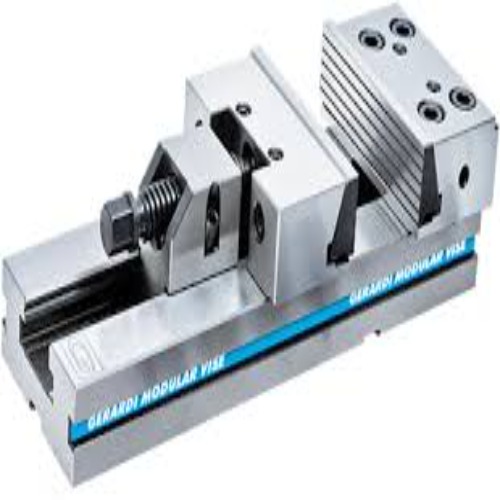

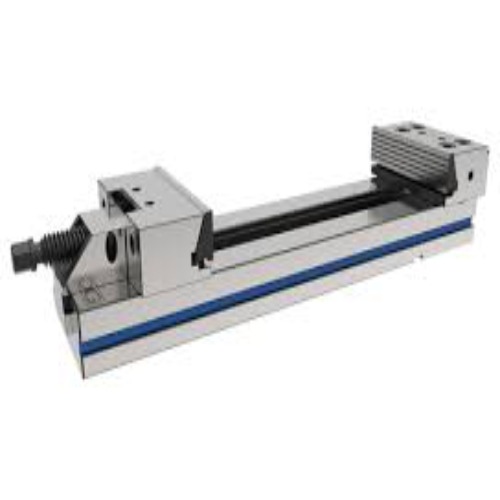

A UNIQUE Modular Vice is a two-piece clamping system for milling machines, designed for versatility and precision. Its modular design allows for unlimited clamping capacity, while features like anti-lift clamping and case-hardened jaws ensure a secure, accurate grip on a wide range of workpieces. It is a highly adaptable work holding solution for CNC and conventional machining.

About MODULAR VICE

A UNIQUE Modular Vice is a type of precision machine vice designed for maximum flexibility and accuracy in milling, grinding, and CNC machining applications. Manufactured by companies such as Unique Industries (India), these vices are known for their ability to be reconfigured to clamp a wide variety of workpieces, from standard shapes to complex or oversized parts.

Key Features and Advantages

Modular Design: The most significant feature is the two-piece design, which allows for unlimited clamping capacity. The vice consists of a fixed jaw and a movable jaw that can be placed in different positions on the machine table's T-slots. This eliminates the size limitations of traditional one-piece vises.
High Precision: The vices are engineered for exceptional accuracy, with specifications often promising a squareness tolerance of 0.01/100 mm. The jaws are made from high-quality alloy steel, case-hardened to a hardness of approximately 60 HRC, and precisely ground to ensure maximum rigidity and a secure grip.
Anti-Lift Clamping: Both jaws are designed with a pull-down angle. This feature actively clamps the workpiece down onto the machine table, preventing it from lifting or shifting during heavy cutting operations and ensuring consistent accuracy.
Versatility: The modular system allows the vice to be used in multiple configurations, including dual clamping setups for holding two or more workpieces simultaneously, or for clamping exceptionally long parts by using both jaws as separate clamping points.
Low Profile: The vice has a low overall height, which provides greater clearance for machining and is particularly beneficial for applications like grinding where a low profile is essential.
Durability: Constructed from high-quality materials such as cast iron or hardened steel, the vice is built for maximum performance and longevity, with high-tensile fasteners providing additional strength.
