L1 Series Back Plate ( FACE PLATE)

3500.0 INR/Piece

Get a Price/Quote

Product Details:

Shape Round
Phase Not Applicable (Mechanical accessory)
Torque KN-w
Diameter 160 Millimeter (mm)
Product Type Lathe Back Plate / Face Plate
General Use Used for mounting chucks or workpieces on lathes, provides stable support and alignment during machining
Material Stainless Steel Alloy
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

L1 Series Back Plate ( FACE PLATE) Price And Quantity

Price 3500.0 INR/Piece
Minimum Order Quantity 1 Piece

L1 Series Back Plate ( FACE PLATE) Product Specifications

Touch Screen No
Torque KN-w
Automatic No
Diameter 160 Millimeter (mm)
Computerized No
Drawing 3D
Product Type Lathe Back Plate / Face Plate
Surface Treatment Polishing
Color SILVER / Natural Steel Grey / Black Finish
Feature High Performance, Simple Control, Stable Operation, ECO Friendly, Low Noise
Weight (kg) 10 Kilograms (kg)
Dimension (L*W*H) 200 Millimeter (mm)
Type Other
Material Stainless Steel Alloy
Shape Round
Warranty 1
Control System Human Machine Interface
Capacity Ton
General Use Used for mounting chucks or workpieces on lathes, provides stable support and alignment during machining
Tolerance Inch
Phase Not Applicable (Mechanical accessory)
Voltage Volt (v)

L1 Series Back Plate ( FACE PLATE) Trade Information

FOB Port TKD
Payment Terms Cash Against Delivery (CAD)
Supply Ability 10 Piece Per Day
Delivery Time 7 Week
Sample Available No
Sample Policy Contact us for information regarding our sample policy
Packaging Details CORRUGATED CORASIS
Main Domestic Market All India
Certifications Based on the available information, the quality of a ZITHER/BONET L1 Series Back Plate is primarily assured through the manufacturer's credentials and their adherence to a high standard of precision. Key Certifications and Quality Assurances ISO 9001:2000 Certified: Zither Machine Tools Industries is an ISO 9001:2000 certified company. This is the most crucial certification for the product. It indicates that the company's entire manufacturing process, from raw material selection to final inspection, is governed by a strict Quality Management System (QMS). Compliance with International Standards: Zither states that their back plates and other products are manufactured to be comparable to international standards. This implies that the product's design, dimensions, and performance meet benchmarks commonly used in the global machine tool industry. Internal Quality Control: The product's high-precision nature is also assured through the manufacturer's rigorous internal quality checks. The back plates are machined to extremely tight tolerances, with critical surfaces like the taper and face being precision-ground to ensure minimal runout and a perfect fit on the lathe spindle.

Product Description

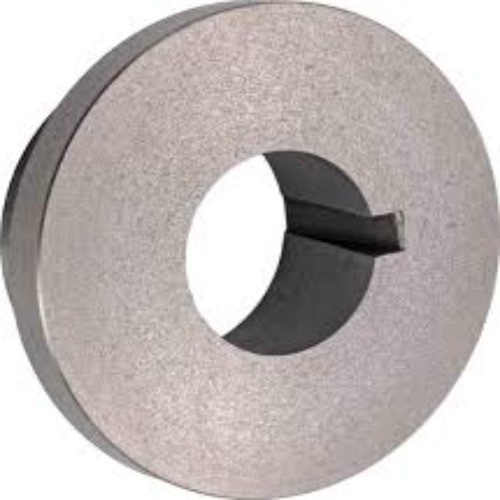

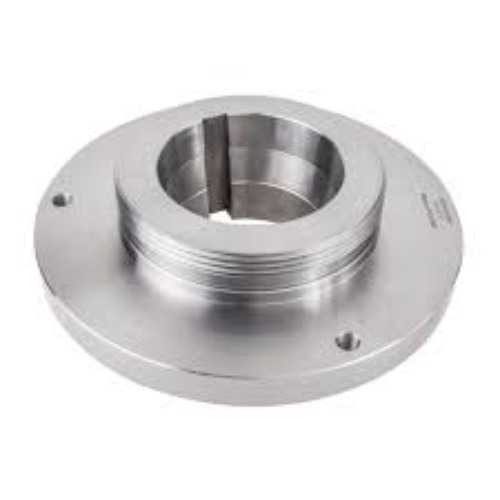

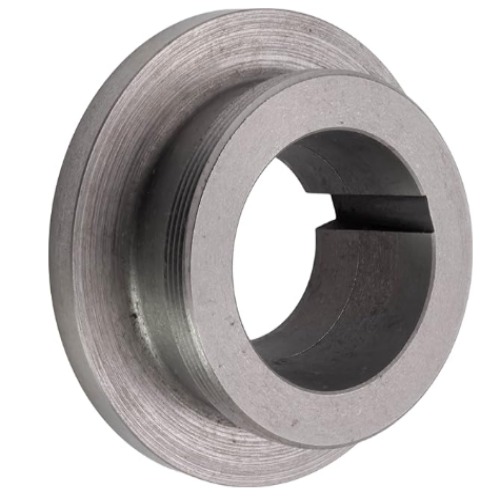

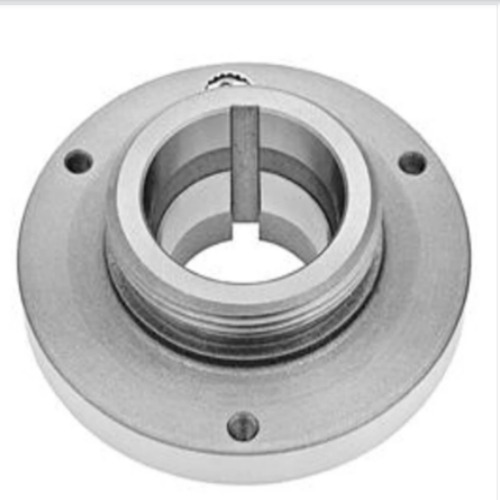

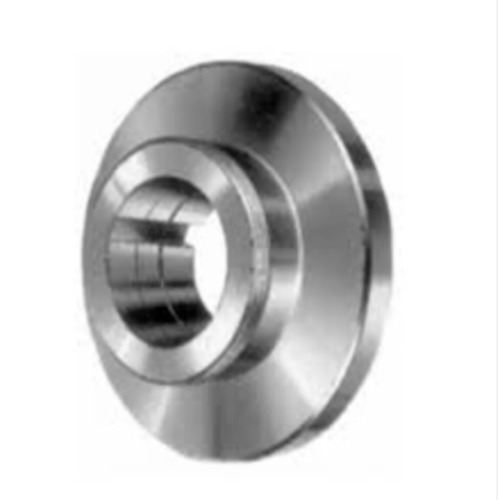

The ZITHER/BONET L1 Series Back Plate is a precision adapter manufactured by Zither Machine Tools Industries, designed to connect a lathe chuck or other work holding device to an L1 Taper Nose Spindle. Known for their quality and accuracy, Zither's back plates ensure a stable and concentric mounting for demanding turning operations.

Key Features

Conformity to L1 Spindle Standard: The back plate is engineered to precisely fit the L1 Taper Nose Spindle, a popular standard known for its quick-change cam-lock system. The tapered bore and dedicated holes for the cam-lock pins ensure a secure, rigid, and repeatable mounting.
Precision Machining: ZITHER/BONET back plates are precision-machined to very tight tolerances. The face and mounting surfaces are ground to ensure superior flatness and runout accuracy, which is crucial for maintaining the concentricity of the mounted chuck.
Durable Materials: These back plates are typically made from high-quality cast iron or steel. The material choice ensures a rigid connection that can withstand the high clamping forces and rotational speeds common in turning applications without any deformation or vibration.
Versatility: Zither's / BONET'S back plates are designed with a universal bolt-hole pattern, allowing them to accept various types of chucks, including three-jaw, four-jaw, and faceplates, from BONET'Sand other brands that conform to international standards.
