Workholding device for CNC & conventional machines
Low Energy Consumption, High Quality
CNC Machined, Precision Ground
Other
12 Months (against manufacturing defects)
380V / 415V Volt (v)
Stainless Steel
BALL LOCK CHUCK Trade Information
TKD
Cash Against Delivery (CAD)
10 Piece Per Month
20 Days
Contact us for information regarding our sample policy
CORRUGATED CORASIS
Middle East
All India
A ball lock chuck, as a specialized workholding device, does not typically have a single product certification like a CE mark. Its quality and performance are guaranteed by the manufacturer's overall quality management system and its adherence to specific design and performance standards.
Key Certifications and Quality Assurances
ISO 9001 Certification: The most important certification to look for is that the manufacturer is ISO 9001 certified. This assures that the company's entire production process, from material selection to final assembly, is governed by a strict Quality Management System (QMS).
Performance and Repeatability: The quality of a ball lock chuck is often verified through a manufacturer's internal testing to confirm its key performance specifications, such as clamping force, pull-down force, and, most importantly, repeatability. High repeatability is a crucial quality metric for this type of chuck.
Safety Standards: As a power-operated device, the chuck must be designed to comply with safety standards related to its clamping mechanism and fail-safe features, ensuring it maintains a grip on the workpiece even in the event of a power loss.
Product Description

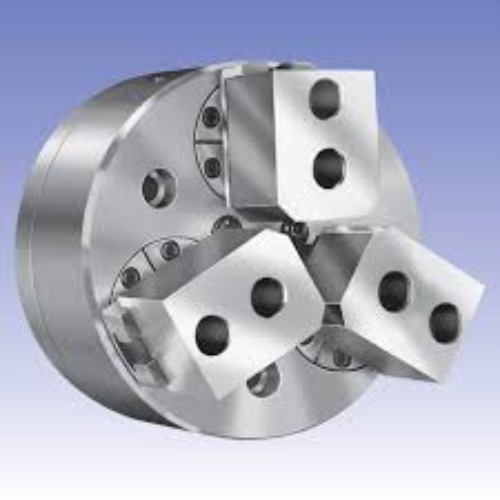

A ball lock chuck is a type of quick-change, power-operated chuck that uses a unique ball-locking mechanism to clamp a workpiece or a fixture plate.It is specifically designed to provide a secure grip with a "pull-down" effect, ensuring the workpiece is pulled firmly against the chuck's face.This design offers high repeatability and reduces setup time, making it ideal for high-volume production and automated machining.
Key Features
Ball-Lock Mechanism: Instead of a traditional wedge or lever system, a ball lock chuck uses a series of precision-machined balls. When the chuck is actuated (typically hydraulically or pneumatically), these balls move to clamp the workpiece or engage a fixture, providing a very strong and consistent clamping force.
Pull-Down Clamping: A key advantage of this chuck is its ability to pull the workpiece against the face of the chuck while clamping it radially.This provides superior axial stability, reduces vibration, and ensures the workpiece is seated correctly.
High Repeatability: The precise ball-locking mechanism allows for extremely accurate repositioning of workpieces or fixtures. This high repeatability is crucial for maintaining consistent part quality across production runs.
Sealed Design: The internal components of the chuck are often sealed to prevent the ingress of chips, dirt, and coolant, which extends the chuck's service life and reduces maintenance.
