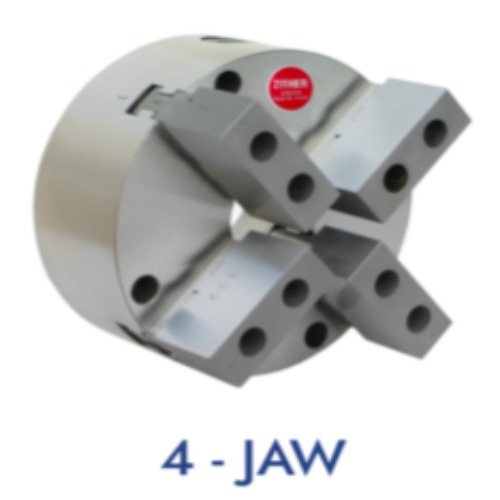

MASTER GRIPPING CHUCK

MASTER GRIPPING CHUCK Specification

Product Type
Master Gripping Chuck Available in 3, 4, 5, and 6 Jaw Variants

General Use
Workpiece holding in CNC, VMC, Lathe, and other precision machining applications

Material
Stainless Steel

Type
Lathe Chuck

Capacity
4.5 Ton

Weight (kg)
20 Kilograms (kg)

Computerized
Yes

Automatic
Yes

PLC Control
Yes

No. Of Jaws
2,3,4,6

Power Source
Manual

Voltage
220 Volt (v)

Dimension (L*W*H)
17 Inch (in)

Feature
Internal Cooling, Anti Rust Capability, High Quality

Color
Standard Machine Grey / Silver

Warranty
1

MASTER GRIPPING CHUCK Trade Information

Minimum Order Quantity
1 Piece

FOB Port
TKD

Payment Terms
Cash Against Delivery (CAD)

Supply Ability
8 Pieces Per Month

Delivery Time
7 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
CORRUGATED CORASIS

Main Export Market(s)
Middle East

Main Domestic Market
All India

Certifications
ISO 9001:2000 Certification: Zither Machine Tools Industries is an ISO 9001 certified company. This certification attests to the implementation of an internationally recognized Quality Management System (QMS). It guarantees that their manufacturing processes, from raw material inspection and machining to heat treatment and final assembly, are all subject to strict quality control. This ensures a consistent and high-quality product. Compliance with International Standards: Zither emphasizes that its chucks are developed to be "comparable to International Standards." While specific DIN or IS standards may not be individually listed for every product, this statement, combined with the ISO certification, serves as a strong indicator that the company adheres to recognized engineering and quality benchmarks. Internal Quality Assurance: The company's commitment to quality is also demonstrated through its rigorous internal practices, which include: Using high-quality alloy steel for all critical components. Applying strict quality control measures at every stage of production. Providing an inspection report with each chuck, confirming its dimensional accuracy and performance.

About MASTER GRIPPING CHUCK

A ZITHER Master Grip Chuck is a type of high-precision, self-centering lathe chuck with a two-piece jaw design. Manufactured by Zither Machine Tools Industries, this chuck is a versatile workholding solution for CNC and conventional lathes, offering both the speed of a self-centering chuck and the flexibility of custom jaws.

How It Works

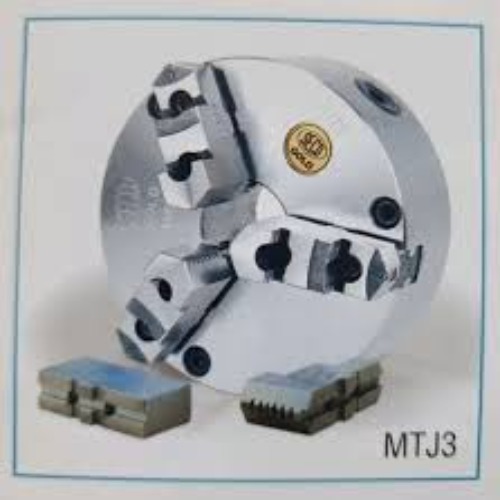

Unlike a standard chuck with a single set of jaws, the Master Grip Chuck's jaws are split into two parts: a master hard base jaw and a set of replaceable top jaws. The top jaws are secured to the base jaws with allen bolts. This design allows for quick changes between different types of jaws, such as a set of reversible hard jaws for standard gripping and a set of soft jaws for re-machining to a specific part's profile.

Key Features

Two-Piece Jaw System: This is the defining feature, providing exceptional versatility. You can use standard hard jaws, or machine soft jaws to match the exact contour of a workpiece, ensuring minimal deformation and high precision.
High Accuracy: The chuck is built to precise tolerances, providing excellent gripping accuracy and repeatability, which is crucial for high-quality finishing operations.
Durable Construction: The chuck bodies are made from high-strength cast iron, and all moving parts, including the jaws and pinions, are made from alloy steel that is heat-treated to ensure maximum wear resistance and a long service life.

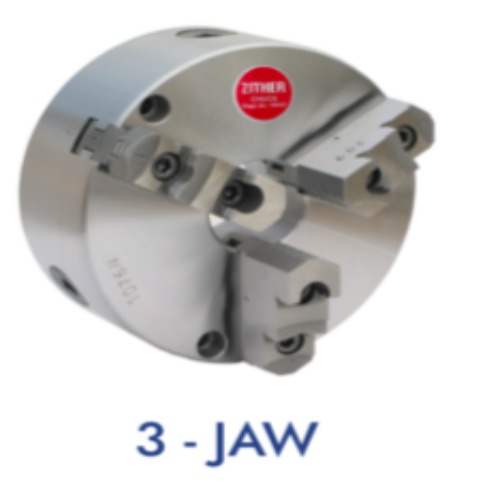

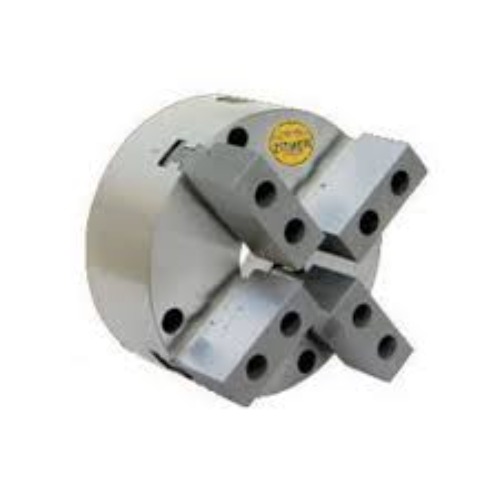

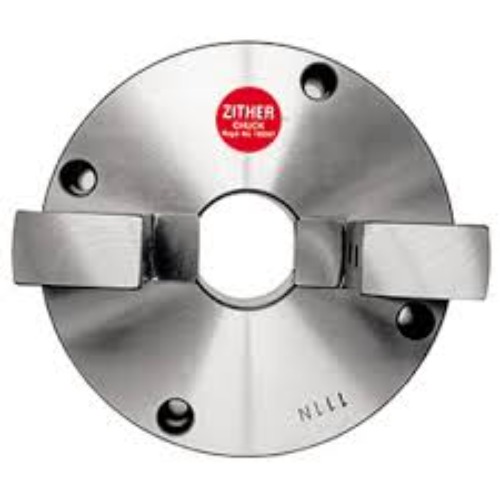

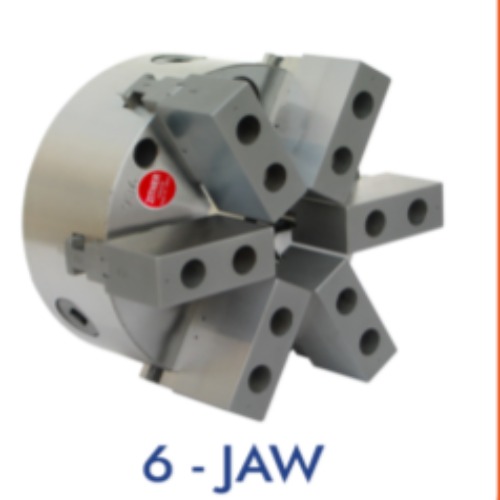

Versatile Configurations: ZITHER offers Master Grip Chucks in various configurations, including 2, 3, 4, and 6-jaw models, making them suitable for a wide range of round, square, hexagonal, and other complex workpieces.
