Master Gripping Chuck ( Seco)
Master Gripping Chuck ( Seco) Specification
- Product Type
- Master Gripping Chuck (2, 3, 4, or 6 Jaw Options)
- General Use
- For gripping and holding components during machining operations on lathes, CNC machines, and grinding machines
- Material
- Stainless Steel
- Type
- Lathe Chuck
- Capacity
- 3 Ton
- Weight (kg)
- 14 Kilograms (kg)
- Computerized
- Yes
- Automatic
- Yes
- PLC Control
- Yes
- No. Of Jaws
- 2,3,4,6
- Power Source
- Manual
- Voltage
- 220 Volt (v)
- Dimension (L*W*H)
- 500 Millimeter (mm)
- Feature
- Anti Rust Capability, Internal Cooling, High Quality
- Color
- Natural Steel / Grey
- Warranty
- 1
Master Gripping Chuck ( Seco) Trade Information
- Minimum Order Quantity
- 1 Piece
- FOB Port
- TKD
- Payment Terms
- Cash Against Delivery (CAD)
- Supply Ability
- 8 Pieces Per Month
- Delivery Time
- 7 Days
- Sample Available
- Yes
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- CORRUGATED CORASIS
- Main Export Market(s)
- Middle East
- Main Domestic Market
- All India
- Certifications
- ISO 9001-2008 Certified: State Engineering Corporation (SECO) is an ISO 9001-2008 certified company. This certification is a globally recognized standard for a Quality Management System (QMS), which ensures that their manufacturing processes are consistently managed to deliver high-quality products that meet customer and regulatory requirements. CE Marked: SECO products are also CE marked. This certification is mandatory for products sold in the European Economic Area (EEA) and indicates that the chuck conforms to European health, safety, and environmental protection standards. For a power chuck, this signifies compliance with safety directives for machinery. Additional Quality Assurances Beyond formal certifications, SECO's commitment to quality is evident in their manufacturing practices: High-Grade Materials: The chuck body is made from high-tensile, wear-resistant cast iron alloyed with nickel, chrome, and manganese. The scroll and other working parts are forged from high-strength steel and are precision-ground. Rigorous Testing: The company states that its products are subject to strict quality control measures to ensure consistent performance, durability, and a long service life.
About Master Gripping Chuck ( Seco)

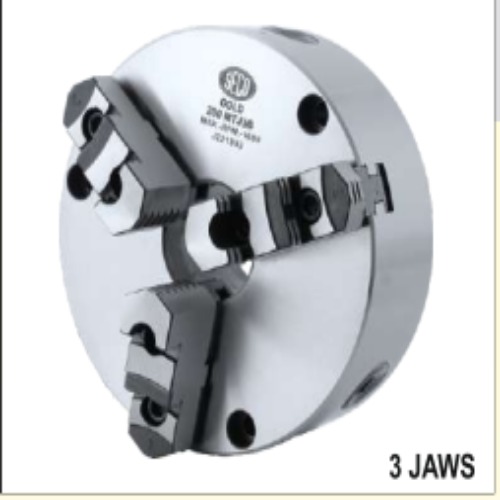

A SECO Master Gripping Chuck (model MTJ-G) is a type of self-centering chuck with a two-piece jaw design, manufactured by State Engineering Corporation. This design makes the chuck highly versatile for both precision machining and mass production.
Key Features
-

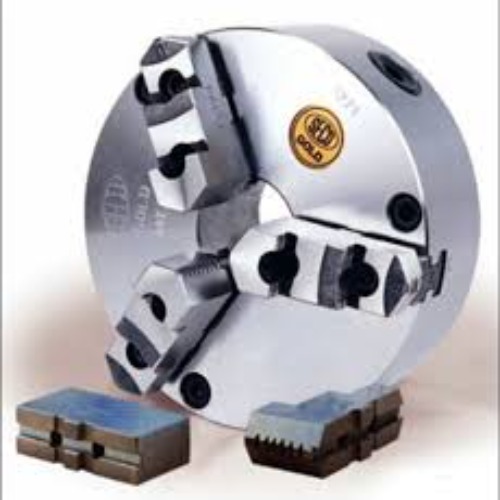

Two-Piece Jaw System: The defining feature of the MTJ chuck is its split jaw system, which consists of master base jaws and replaceable top jaws. The chuck comes standard with a set of reversible hard jaws and a set of soft jaws. The soft jaws can be machined to fit the exact profile of a workpiece, which is ideal for holding delicate or irregular parts without damage and for ensuring high repetitive accuracy during secondary operations.
-
High Precision: SECO chucks are designed to provide a high level of accuracy and repeatability. The Master Gripping Chucks in particular are known for their ability to achieve a repetitive accuracy of less than 0.05 mm on chucks ranging from 160 mm to 315 mm in diameter.
-
Durable Construction: The chuck body is made from high-tensile, wear-resistant cast iron alloyed with nickel, chrome, and manganese. The scroll is forged from high-strength steel and hardened, and all working surfaces are precision-ground to ensure a long and reliable service life.
-

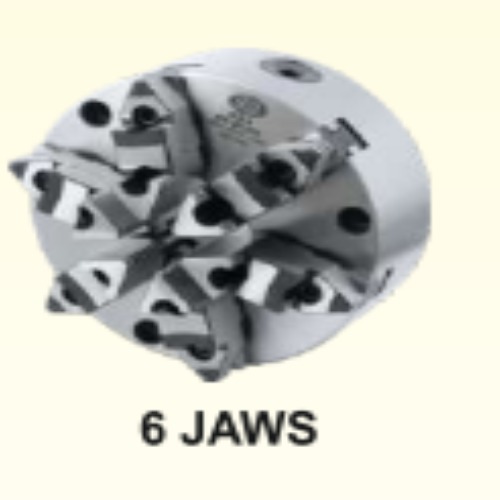

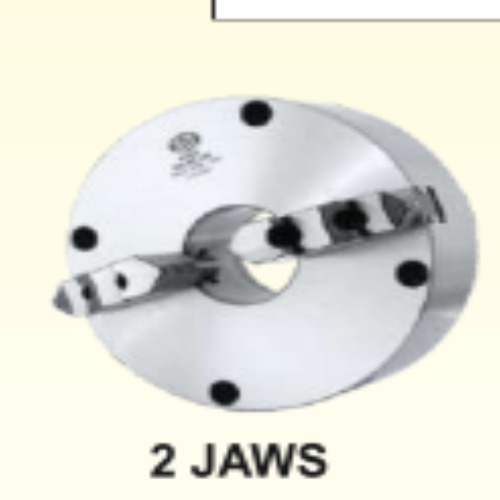

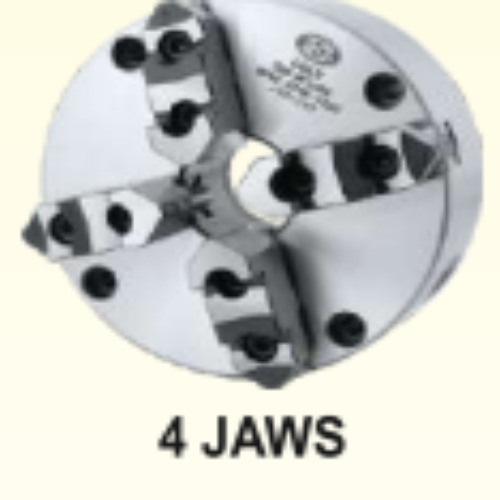

Wide Range of Applications: These chucks are suitable for a wide range of CNC and conventional lathes and are available in various sizes and jaw configurations (2, 3, 4, and 6-jaw).
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in True Chuck Category
MASTER GRIPPING CHUCK
Price 10000.0 INR / Piece
Minimum Order Quantity : 1 Piece
Computerized : Yes
Weight (kg) : 20 Kilograms (kg)
Automatic : Yes
General Use : Workpiece holding in CNC, VMC, Lathe, and other precision machining applications
MASTER GRIPPING CHUCK ( TURNO)
Price 11500.0 INR / Piece
Minimum Order Quantity : 1 Piece
Computerized : Yes
Weight (kg) : 14 Kilograms (kg)
Automatic : Yes
General Use : For gripping and holding components during machining operations on lathes, CNC machines, and grinding machines
GAMET SELF CENTERING CHUCK
Price 7550.0 INR / Piece
Minimum Order Quantity : 2 Pieces
Computerized : No
Weight (kg) : 18 Kilograms (kg)
Automatic : No
General Use : Holding round or hexagonal workpieces firmly during lathe machining
MIEKA TRUE CHUCK
Price 4000.0 INR / Piece
Minimum Order Quantity : 2 Pieces
Computerized : No
Weight (kg) : 6 Kilograms (kg)
Automatic : No
General Use : Holding round or hexagonal workpieces firmly on small lathes Ideal for turning, facing, boring, and lightduty machining Suitable for manual bench lathes, mini lathes, and toolroom applications Commonly used in educational workshops, R&D labs, and precision part manufacturing
