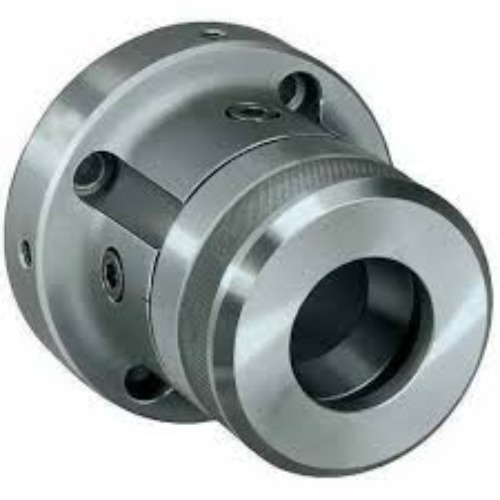

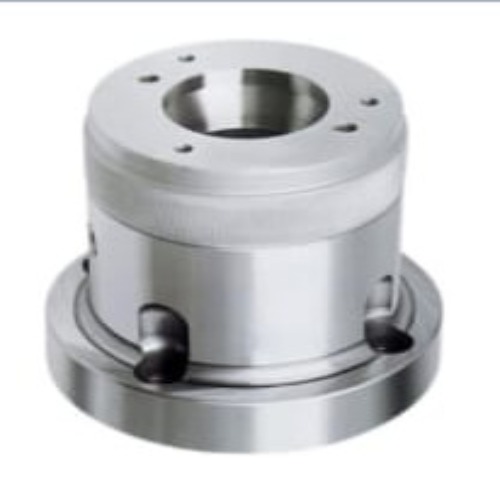

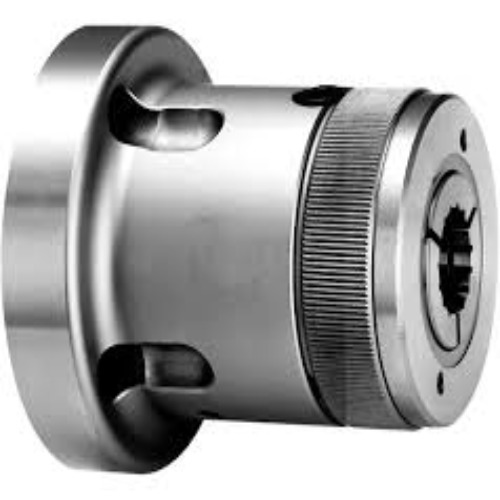

AIRTECH COLLET CHUCK

AIRTECH COLLET CHUCK Specification

Product Type
Workholding device Collet Chuck

General Use
INDUSTRIAL

Material
Stainless Steel

Type
Lathe Chuck

Capacity
35 Ton

Weight (kg)
7 Kilograms (kg)

Computerized
No

Automatic
No

PLC Control
No

No. Of Jaws
N/A

Power Source
Manual

Voltage
2 Volt (v)

Dimension (L*W*H)
310 Millimeter (mm)

Feature
Anti Rust Capability, Internal Cooling, High Quality

Color
Metallic silver / black oxide finish

Warranty
1

AIRTECH COLLET CHUCK Trade Information

Minimum Order Quantity
1 Piece

FOB Port
TKD

Payment Terms
Cash Against Delivery (CAD)

Supply Ability
10 Pieces Per Month

Delivery Time
15 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
CORRUGATED CORASIS

Main Export Market(s)
Middle East

Main Domestic Market
All India

Certifications
ISO 9001 Certification: Airtech Private Limited, the manufacturer, is a well-established company in the workholding industry. Reputable manufacturers in this space typically hold ISO 9001 certification for their Quality Management System (QMS). This certification indicates that their manufacturing processes are consistently managed to produce high-quality products. Internal Quality Standards: AIRTECH collet chucks are designed and manufactured with a focus on high-speed and precision applications. Their product descriptions emphasize the use of high-grade alloy steel and that all sliding surfaces are hardened and ground for accurate running and long service life. This level of detail in their manufacturing process is a strong indicator of their internal quality standards. Designed for Indian Working Conditions: The company states that its workholding solutions are "specially designed for Indian working conditions" and are competitive with global manufacturers, implying they meet the robust performance requirements of their target market.

About AIRTECH COLLET CHUCK

***Airtech collet chucks are typically "dead-length" type, meaning the workpiece doesn't move axially when clamped. They are actuated by a rear-mounted hydraulic or pneumatic cylinder via a drawtube that passes through the spindle. This axial motion converts to a radial clamping force on the workpiece through a collet. This design ensures consistent part location and high repeatability***

Key Features and Benefits

High-Speed Machining: Made from high-grade alloy steel with hardened and ground sliding surfaces, AIRTECH collet chucks are designed for accurate and long service life at high RPMs.
Precision and Repeatability: They provide excellent concentricity, which is essential for maintaining tight tolerances and achieving superior surface finishes. The dead-length design prevents the workpiece from being pulled into or pushed out of the chuck, ensuring precise end-stop location.
Self-Adjusting Mechanism: These chucks have a self-adjusting ability to accommodate minor diameter variations in bar stock.
Versatility: They can be supplied with various collet types (e.g., steel or rubber flex collets) to hold a wide range of workpiece sizes and shapes.
Durability and Longevity: A built-in lubrication facility helps ensure a long, trouble-free life for the chuck, reducing maintenance and downtime.
