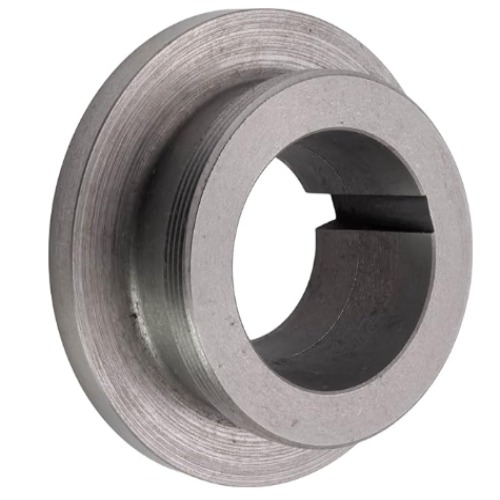

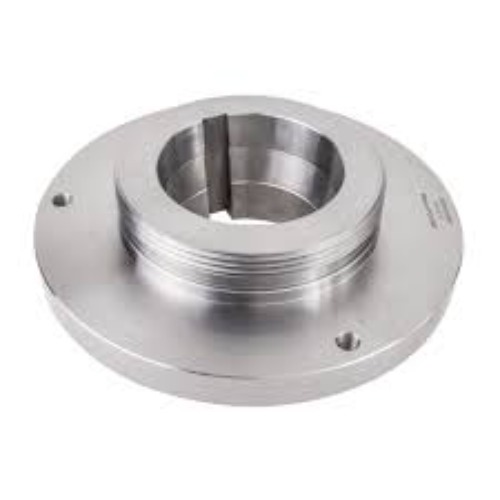

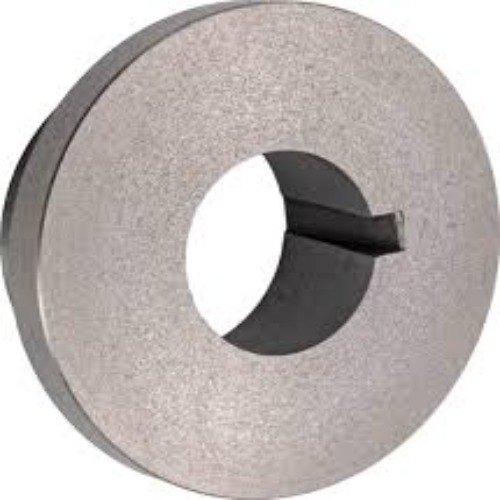

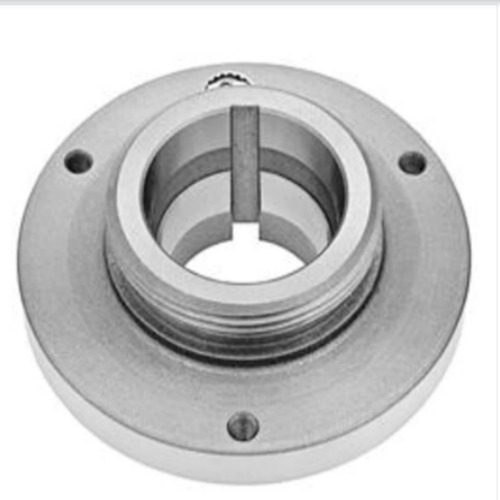

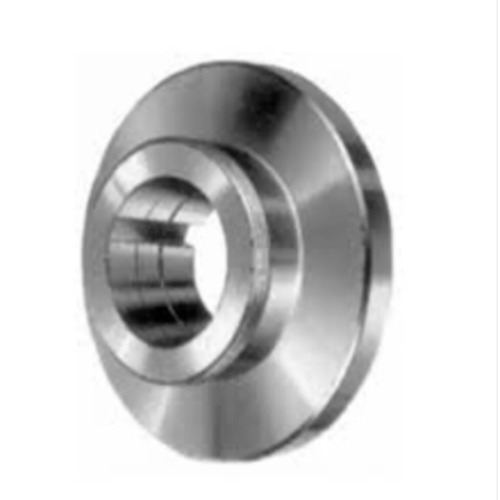

L1 Series Back Plate ( FACE PLATE)

L1 Series Back Plate ( FACE PLATE) Specification

Phase
Not Applicable (Mechanical accessory)

Diameter
160 Millimeter (mm)

Shape
Round

Torque
0 KN-w

Product Type
Lathe Back Plate / Face Plate

General Use
Used for mounting chucks or workpieces on lathes, provides stable support and alignment during machining

Material
Stainless Steel Alloy

Type
Other

Capacity
0 Ton

Weight (kg)
10 Kilograms (kg)

Computerized
No

Automatic
No

Touch Screen
No

Control System
Human Machine Interface

Surface Treatment
Polishing

Tolerance
0 Inch

Drawing
3D

Voltage
0 Volt (v)

Feature
High Performance, Simple Control, Stable Operation, ECO Friendly, Low Noise

Color
SILVER / Natural Steel Grey / Black Finish

Warranty
1

L1 Series Back Plate ( FACE PLATE) Trade Information

Minimum Order Quantity
1 Piece

FOB Port
TKD

Payment Terms
Cash Against Delivery (CAD)

Supply Ability
10 Pieces Per Day

Delivery Time
7 Week

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
CORRUGATED CORASIS

Main Export Market(s)
Middle East

Main Domestic Market
All India

Certifications
Based on the available information, the quality of a ZITHER/BONET L1 Series Back Plate is primarily assured through the manufacturer's credentials and their adherence to a high standard of precision. Key Certifications and Quality Assurances ISO 9001:2000 Certified: Zither Machine Tools Industries is an ISO 9001:2000 certified company. This is the most crucial certification for the product. It indicates that the company's entire manufacturing process, from raw material selection to final inspection, is governed by a strict Quality Management System (QMS). Compliance with International Standards: Zither states that their back plates and other products are manufactured to be comparable to international standards. This implies that the product's design, dimensions, and performance meet benchmarks commonly used in the global machine tool industry. Internal Quality Control: The product's high-precision nature is also assured through the manufacturer's rigorous internal quality checks. The back plates are machined to extremely tight tolerances, with critical surfaces like the taper and face being precision-ground to ensure minimal runout and a perfect fit on the lathe spindle.

About L1 Series Back Plate ( FACE PLATE)

The ZITHER/BONET L1 Series Back Plate is a precision adapter manufactured by Zither Machine Tools Industries, designed to connect a lathe chuck or other work holding device to an L1 Taper Nose Spindle. Known for their quality and accuracy, Zither's back plates ensure a stable and concentric mounting for demanding turning operations.

Key Features

Conformity to L1 Spindle Standard: The back plate is engineered to precisely fit the L1 Taper Nose Spindle, a popular standard known for its quick-change cam-lock system. The tapered bore and dedicated holes for the cam-lock pins ensure a secure, rigid, and repeatable mounting.
Precision Machining: ZITHER/BONET back plates are precision-machined to very tight tolerances. The face and mounting surfaces are ground to ensure superior flatness and runout accuracy, which is crucial for maintaining the concentricity of the mounted chuck.
Durable Materials: These back plates are typically made from high-quality cast iron or steel. The material choice ensures a rigid connection that can withstand the high clamping forces and rotational speeds common in turning applications without any deformation or vibration.
Versatility: Zither's / BONET'S back plates are designed with a universal bolt-hole pattern, allowing them to accept various types of chucks, including three-jaw, four-jaw, and faceplates, from BONET'Sand other brands that conform to international standards.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Back Plates / Mounting Flanges Category

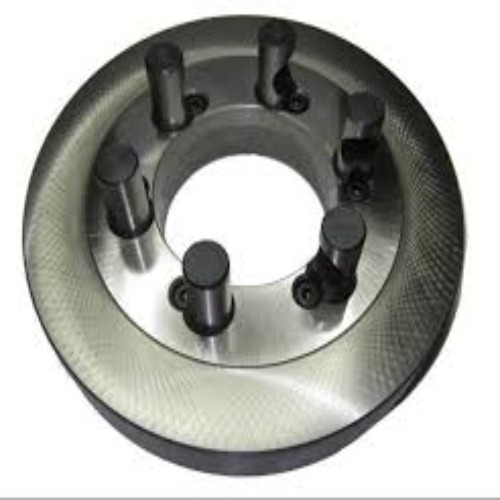

D1 Series Back Plate
